Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle loom tools 6-105 shuttle box and reed angle setting gauge. The textile tools (shuttle box setting gauge and reed setting gauge) are mainly used to check:
1.The plane angle between K12 or 3306 shuttle box protection plate and K14 or 3307 shuttle box bottom plate is 90 °;
2.The plane angle between the side of K13 or 3314 front brake rail and K15 or 3308 shuttle box bottom plate is 90 °;
3.The plane angle between the side of Q3 * Q4 or 3303 * 3304 shuttle box back plate and 3307 or K14 shuttle box bottom plate is 86.5 °;
4.The angle between the side of the shuttle box lifting back plate Q6 * Q7 and the plane of K15 or 3308 (hangar side) is 86.5 °.

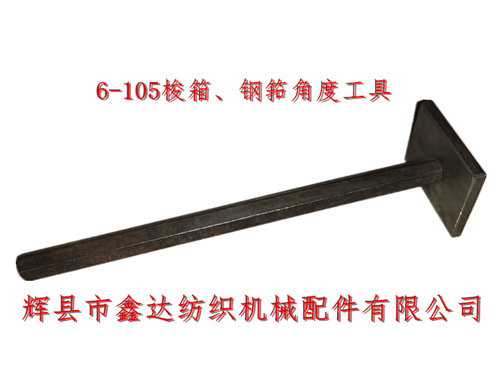

Textile tool 6-105 shuttle box reed angle gauge is composed of square gauge and hexagonal gauge handle (see the figure below). It is a loom tool, shuttle box gauge and loom gauge. The four angles of the front gauge are 90 °, 90 °, 93.5 ° and 86.5 ° respectively. Generally, 90 ° right angles and 86.5 ° right angles are used.
The size of the shuttle box reed setting gauge (square): 45mm wide at the bottom, 42mm wide at the top, 35mm high, 5mm thick, and M8 screw hole in the middle; Textile hardware tools - the total length of the handle rod is 173 mm, the length of the front screw rod is 7 mm, the total length of the hexagonal handle rod is 166 mm, and the thickness is 10 mm.
The weight of a single shuttle box sizing tool is about 0.12kg. This textile sizing product can be used for shuttle looms of 1511, 1515, GA615 and other models. It is a special tool for loom installation and detection. In the specific operation process, if the angle is wrong, it can be corrected with pad paper between the back plate arm and the back plate, between the back plate and the reed frame.
